24V DC Solenoid Contactor Switch 100A

24V DC Solenoid Contactor Switch 100A
SKU: BRX24SLD100
Manufacturer part number: BRX24SLD100
Availability: 15 in stock
$27.75
$7.95
$2.85
Condition: New


Part Number: BRX24SLD100

The BRX24SLD100 is a 24V DC Solenoid contactor switch, normally open, with working Amperage range between 1A to 100A.
It can be used on applications where high current must be passed direct to a motor (or other device) bypassing a timer or other low current capability switching device. I can be used with any of our timers, or switching device with a minimum output power of 2A.

Minimum Working Voltage: 19.20V DC
Maximum Continuous Current: 100A
Surge Current: 150A

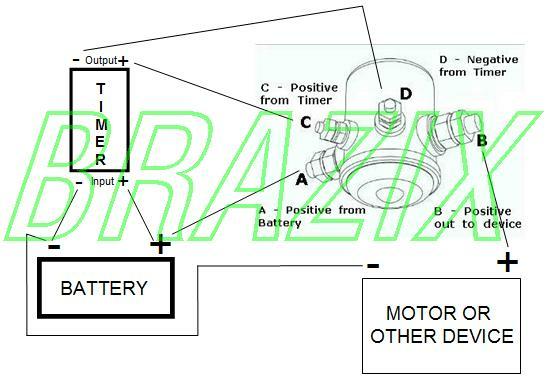

Below is a suggestion installation for this Solenoid when used with a DC Timer. Please note the position of the Solenoid to have a good reference to identify the correct connecting poles.


Solenoid






Additional Notes:
