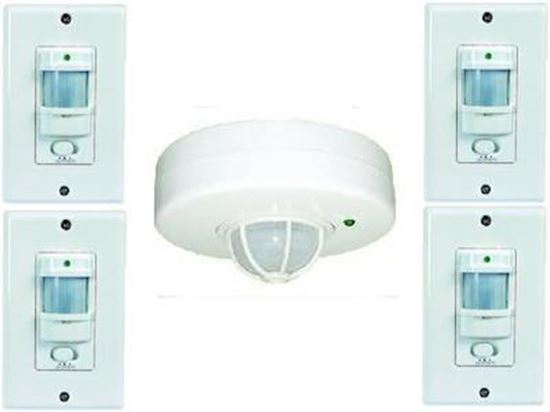

Relay Infrared Motion Sensor Occupancy Wall SwitchWHITE COLOR , INDOOR USE , REF.: MSS4KW
General:This new energy saving Passive Infrared wall switch utilizes an integrated circuit manufactured with the latest surface mount technology, has excellent detection sensitivity and a rapid response time. Its design incorporates automatism, convenience, safety, energy-saving and practical functions. The wide detection range senses an up, down, left and right field of motion. It works by seeing human body heat in motion via infrared rays. It is designed to replace an existing wall switch for interior lighting. It can start the controlled output load (light) immediately when a person crosses the detection field and it will not switch on unless the room is dark or dimly lit. The unit incorporates a simple three wire installation, a status indicator LED light and built-in photocell.FEATURES - This switch controls: incandescent bulbs, compact florescent bulbs (CFL) and florescent fixtures with Electronic Ballast. - Relay motion sensor occupancy switch. No flickering with CFL and Florescent Bulbs with Electronic Ballast. - Power frequency: 50~60Hz - Control light: <3 LUX ~ 2000 Lux (Adjustable) - Time-Delay: Minimum:8sec±3sec to a Maximum:7min±2min - Power source: 100V/AC~130V/AC <=> 220V/AC~240V/AC - 1200W(220V/AC~240V/AC) - 800W(100V/AC~130V/AC) - Power consumption:0.45W(static 0.1W) - Detection range: 180° - Detection distance: 12 meters maximum at less than 24°C - Working temperature:-20 to 40°C - Working humidity: Less than 93% Relative Humidity - Suggested Installation height: 0.5 meter to 3.5 meters - Detection motion speed: 0.6 to 1.5 meters per second - THIS IS NOT A SINGLE POLE SWITCH. IT NEEDS HOT AND NEUTRAL WIRES WELL IDENTIFIED IN ORDER TO WORK. Please see the installation diagram below. FUNCTION: - The detection distance can be adjusted: The detection distance is near if you press down the switch, otherwise it is far; - It can identify day and night automatically: The working ambient light of the sensor can be adjusted. When you turn it to the sunshine (largest), it can work day and night while it can only work in the circumstance less than 3 Lux If you turn it to moon (smallest). Please refer to the testing paragraph about the adjustment - Power and detection indication: The indicator lamp flashes one time each 4sec after switching on the power. It can flash 2 times each 1sec after detecting motion signal so it can show if the detection and power are normal. - Time-delay added continually: When it receives the second motion signal, after the first, it should add the time-delay to the remaining of the first time-delay basis. - Time-delay adjustment: The working time-delay can be adjusted according to the customer desire. The minimum time is 8sec±3sec and the maximum is 7min±2min. - Locking function: during work the sensor will keep load lighting when power is shut off for 2 seconds and then on. When power is shut off for 4 seconds and then on, sensor will resume automation.
